Panel glide systems - large class surfaces stylishly shaded
back
- Product information
- Operation
- Maximum sizes
- Technical details
-
Properties
- Flexible, elegant shading of wide window façades
- Individual arrangement and design possibilities
- Also suitable as room partition elements
- Optionally panels can be coupled or are freely movable
Use
- Retail, industrial, commercial and administrative buildings

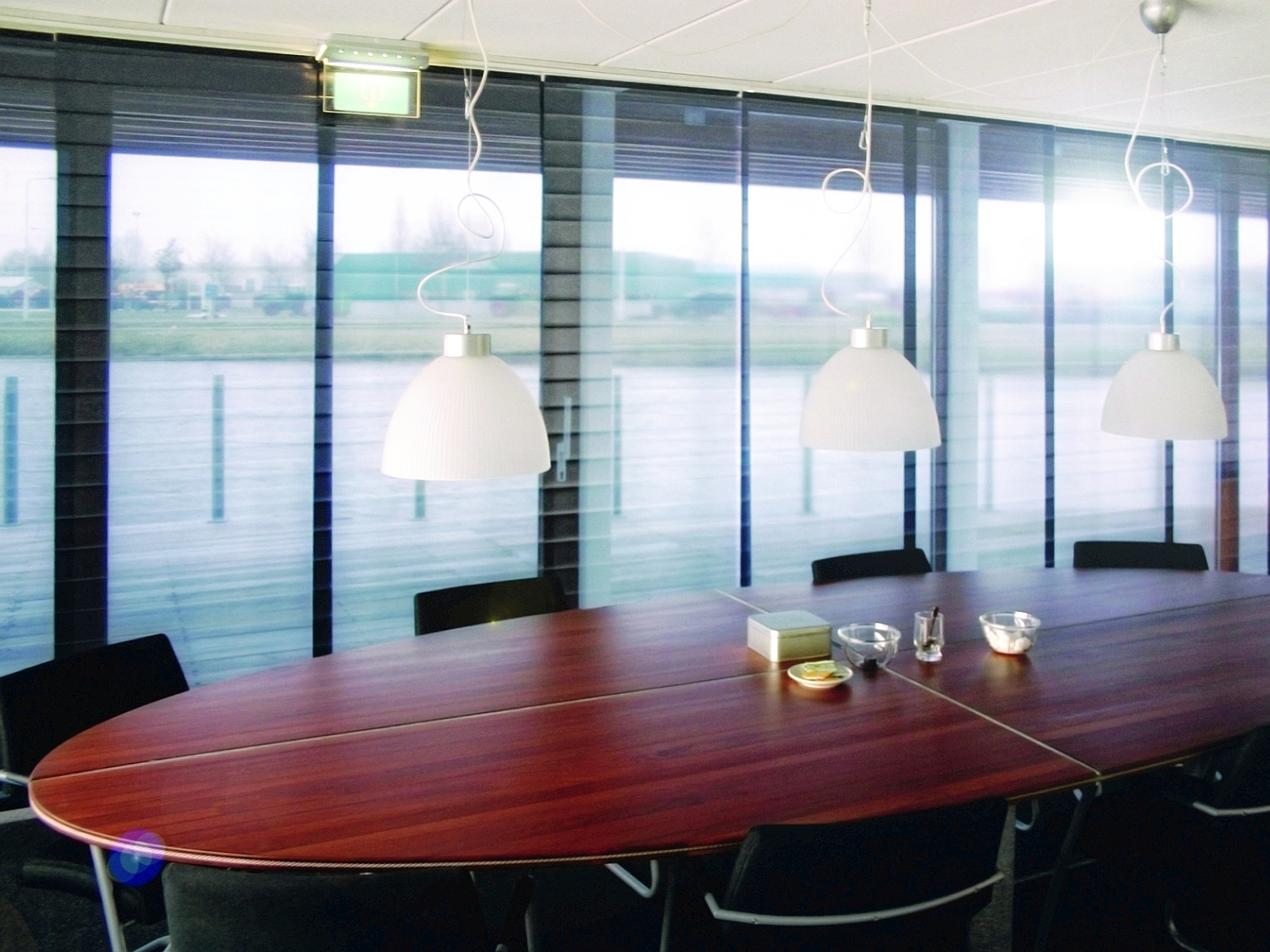

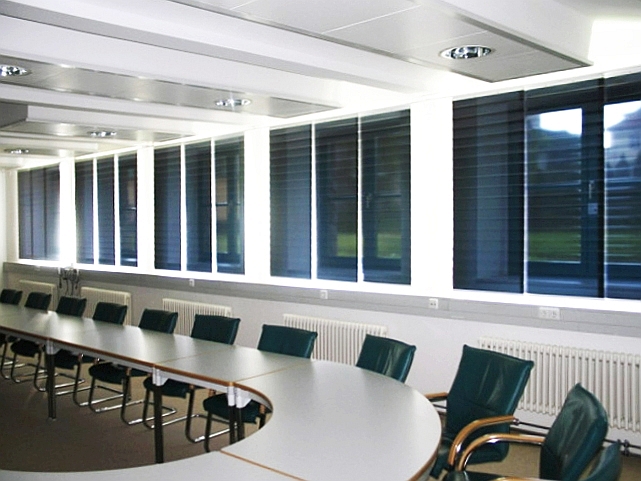

- In conference rooms, foyers and showrooms
-
Operation and drive variants
Manual operation:
- Via pull cord, panels are coupled
- Per operating rod, each panel individually operable or coupled
- Freely movable, with contact protection
-
Maximum sizes
Max. width Max. height 12,000 mm 4,000 mm -
-
Rail system
- Rails, fixtures and bottom rod in white (RAL 9010) or RAL powder-coated
- Rails with 2 to 5 runs, up to 10 runs can be coupled
-
Panels
- Width of single panel up to 3,000 mm
- Top with loop fastener for attachment to the panel carrier
- Bottom with aluminium bottom rail
-
Arrangement possibilities
- For compled panels

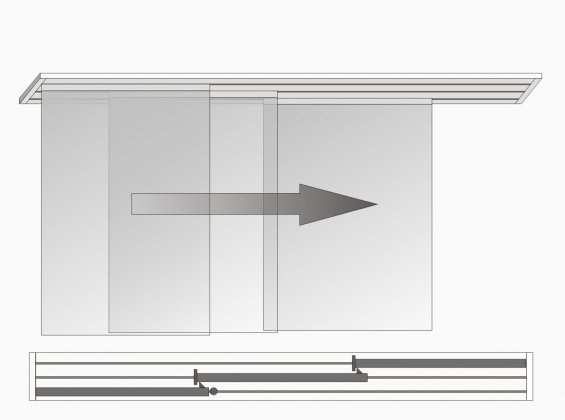

3 runs, one-sided, Panels left,
one fixed panel

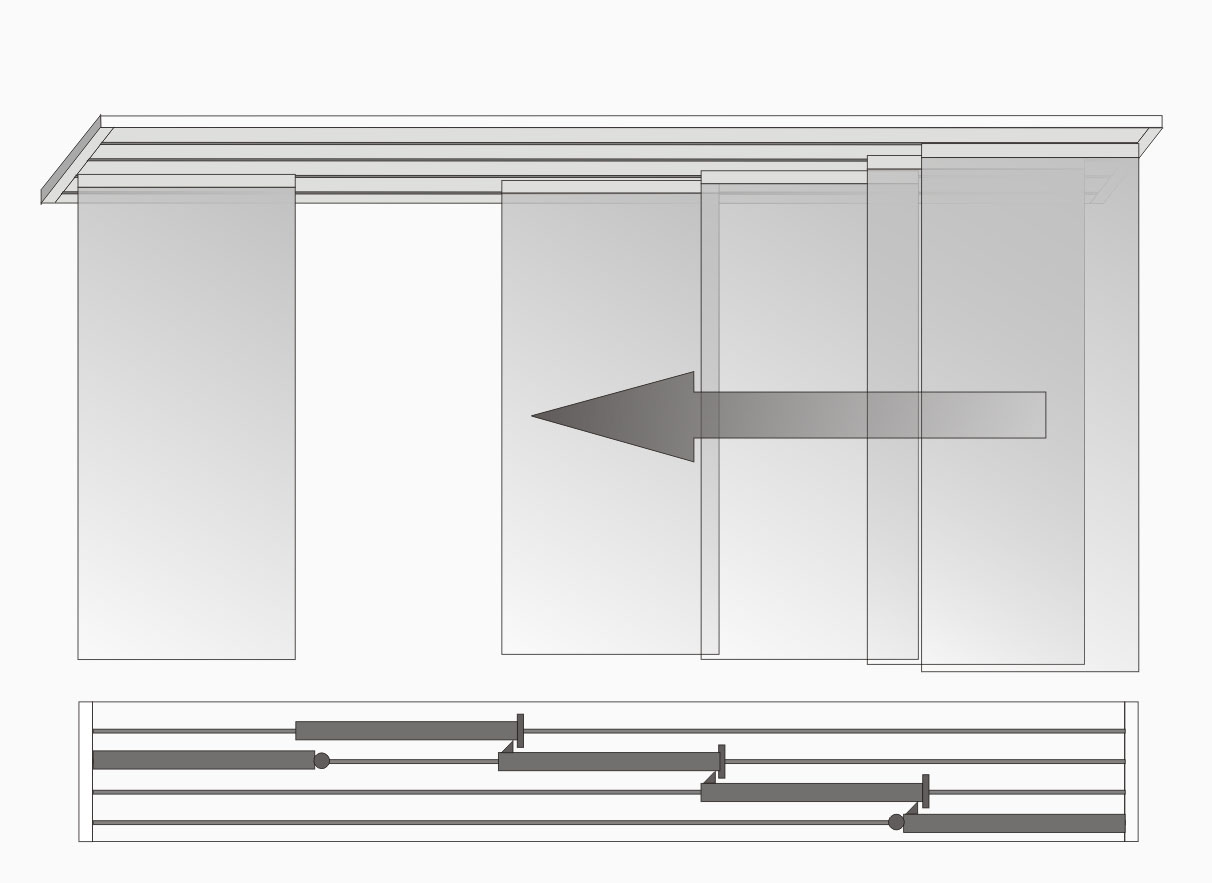

4 runs, one-sided, panels right,
two fixed panels

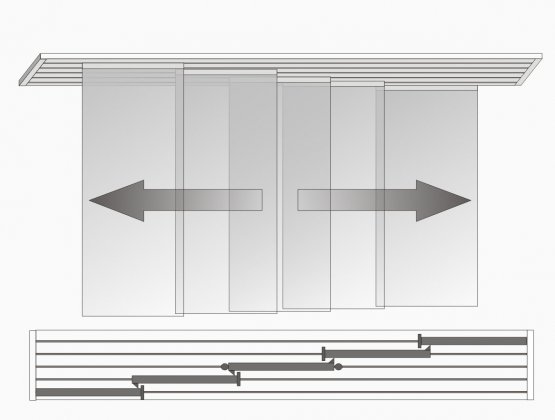

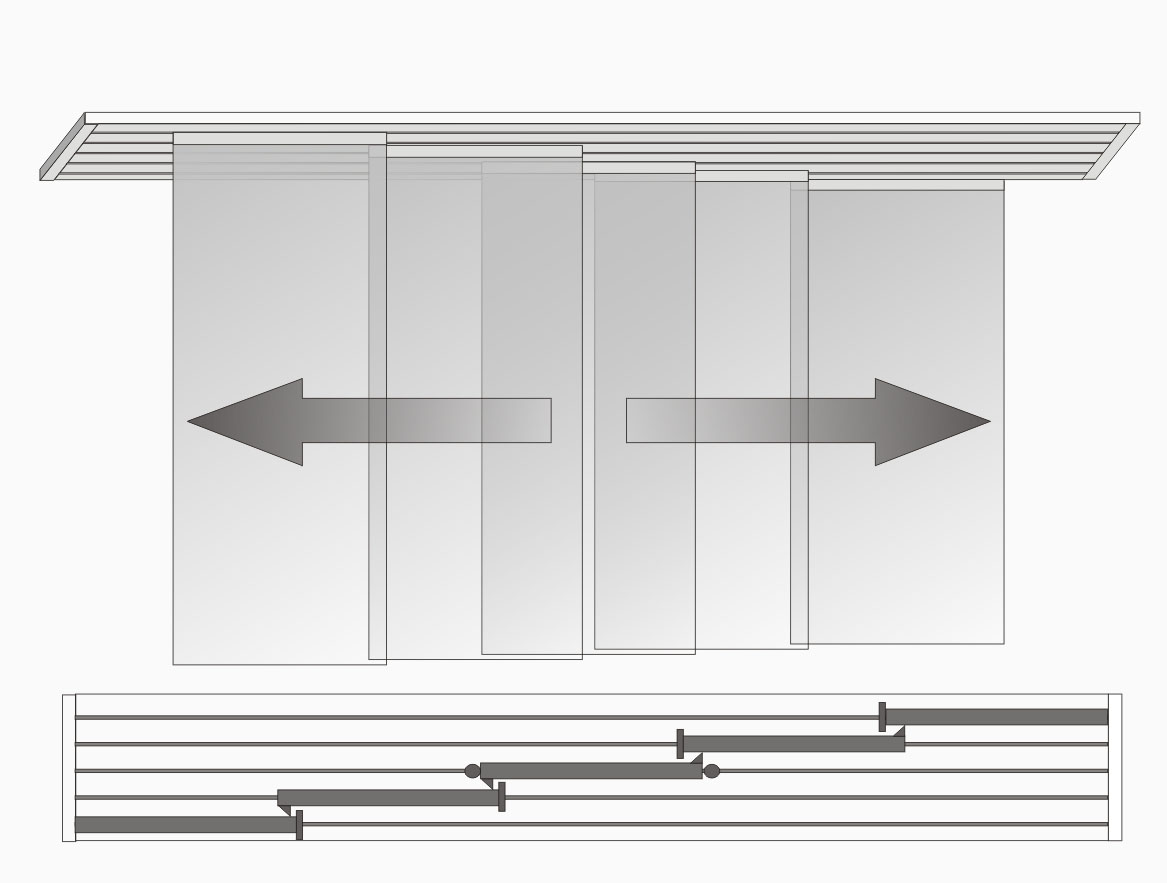

5 runs, both-sided, panels centrical,
one fixed panel

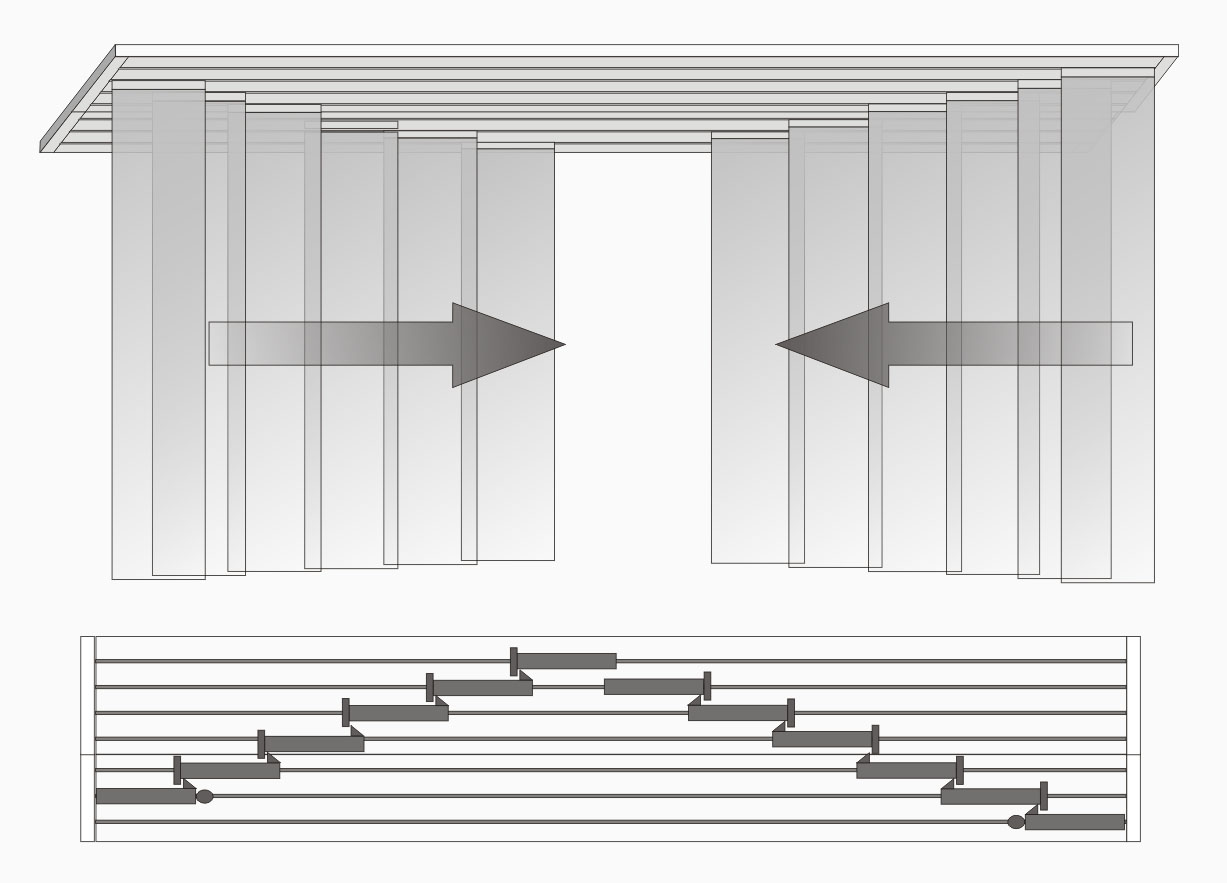

7 runs, panels both-sided,
two fixed panels
-
Installation
Installation of the rail with
carrier to the ceiling
Installation of the rail with mounting angles to the wall
-
Rail system
