Trend-Line - elegant window decoration
back
- Product information
- Operation
- Maximum sizes
- Technical details
-
Properties
- Roller blind with decorative character
- Either with and without head box
- Installation without side guides in front or in the window recess
Use
- Private, commercial and administrative buildings
-
Operation and drive variants
Manual:
- Chain loop
Electrical:
- Motor (24 V) with switch and remote control
- Rechargeable battery motor with remote control:
Can be retrofitted without complex cabling, uncomplicated recharging, charging cycle approx. 2 months - BUS-capable SMI motor (24 V) with switch or remote control:
Intelligent motors enable synchronous run of adjacent systems and exact stopping at any intermediate positions, with soft start and stop
-
Maximum Sizes
Max. width Max. height 2,500 mm 3,400 mm Element height depending on film or fabric type as well as pleating
-
-
Head boxes
- Multi-piece aluminium housing, either anodised or RAL powder-coated
- With side metal covers
- For variant without head box: support rail also with side metal covers
Head box Trend-Line R3

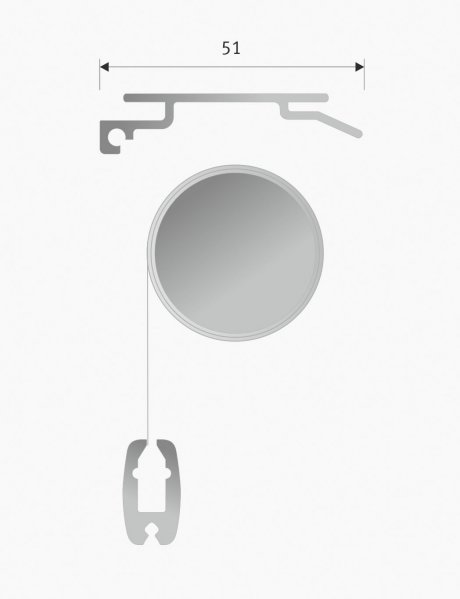

Trend-Line with support rail
for installation in the recess/ on the ceiling

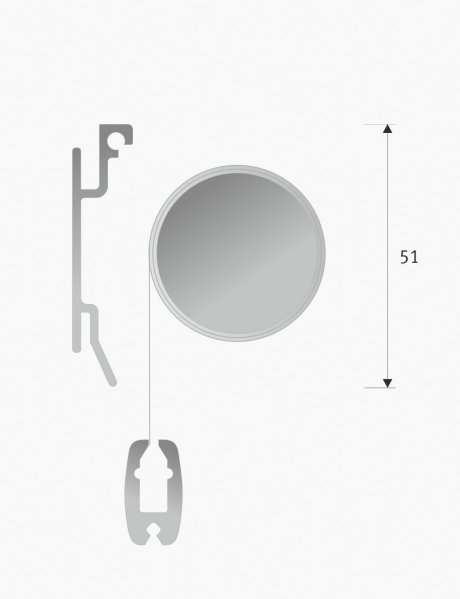

Trend-Line with support rail
for installation on the wall
-
Side guides
For this roller blind no side guides are required.
-
Bottom rails
- Aluminium profiles, either anodised or RAL powder-coated
Bottom rail T
Bottom rail S
-
Installation

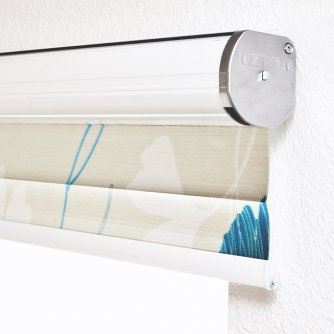

Installation with support rail on the wall

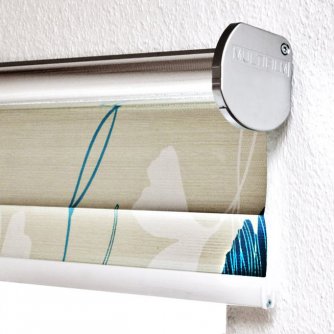

Installation on the wall

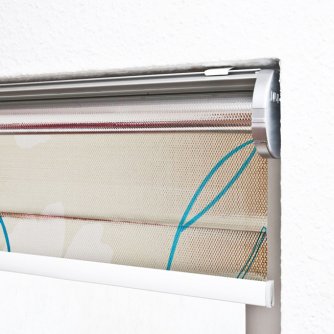

Installation with support rail
in the recess/ to the top
Installation in the recess
-
Head boxes
