Compact-Line - smart and affordable
back
- Product information
- Operation
- Maximum sizes
- Technical details
-
Properties
- Particularly small head box (35 x 35 mm)
- Different side guides available
- Quick and easy installation
Use
- Mainly for larger projects

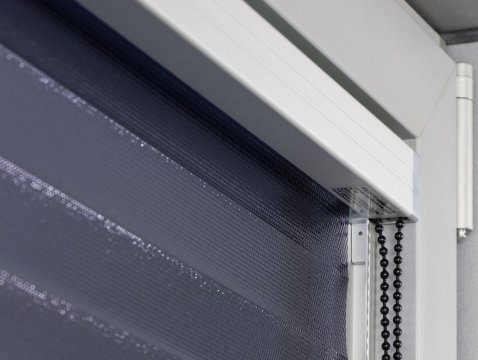

Rollers at the bottom rail ensure a good moving of the blind

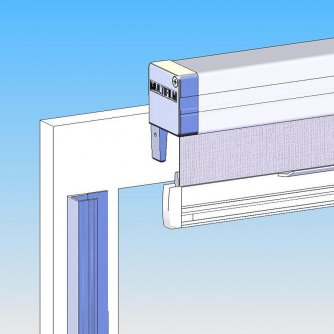

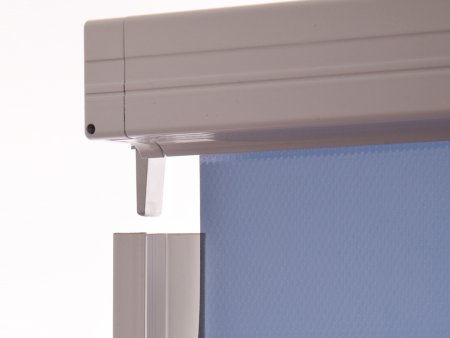

Easy installation: Head box insertion into glued-on side guides
-
Operation and drive variants
- Manual with chain loop

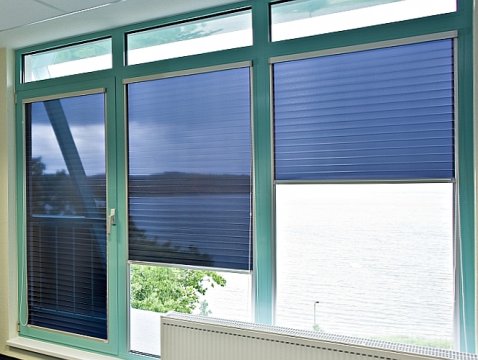

Roller blind Compact-Line with chain operation, installation on the frame
-
Maximum sizes
Max. width Max. height 1,500 mm 3,400 mm Element height depending on film or fabric as well as pleating
-
-
Head boxes
- Multi-piece aluminium housing, either anodised or RAL powder-coated
- Non-visible ventilation slots
- Side metal cover
Head box COg (closed)
for mounting into frame
Head box CO (open)
for mounting on the frame
-
Side guides
- Aluminium profiles, either anodised or RAL powder-coated
- Optimal lateral guide for film and bottom rail
- For covering the lateral light gaps
- For protection of the film edges against damage
U12, U27, U38, U50
U15/25
U30/50
UL38, UL50
Y32
-
Bottom rails
- Aluminium profiles, either anodised or RAL powder-coated
- Side plastic gliders for minimised running noise
- Different bottom rail types depending on hanging materials, e.g. with adjustable stop rollers for optimum guidance of film or fabric
- Adaptations for rope guidance for C1 and C2 head box possible
Bottom rail P
-
Installation
Adhesive installation on the frame (no drilling)

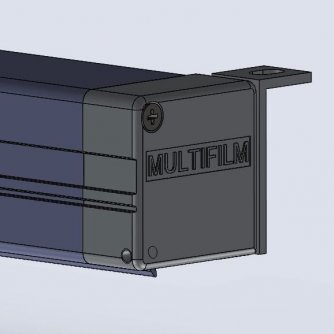

Installation with mounting angles (without side guides)
to the top/ on the ceiling

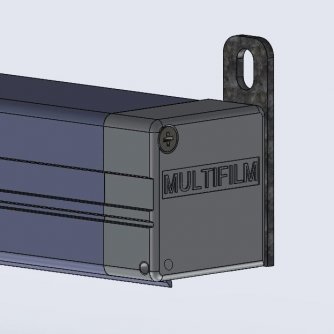

Installation with mounting plates (without side guides)
to the back side/ on the frame
-
